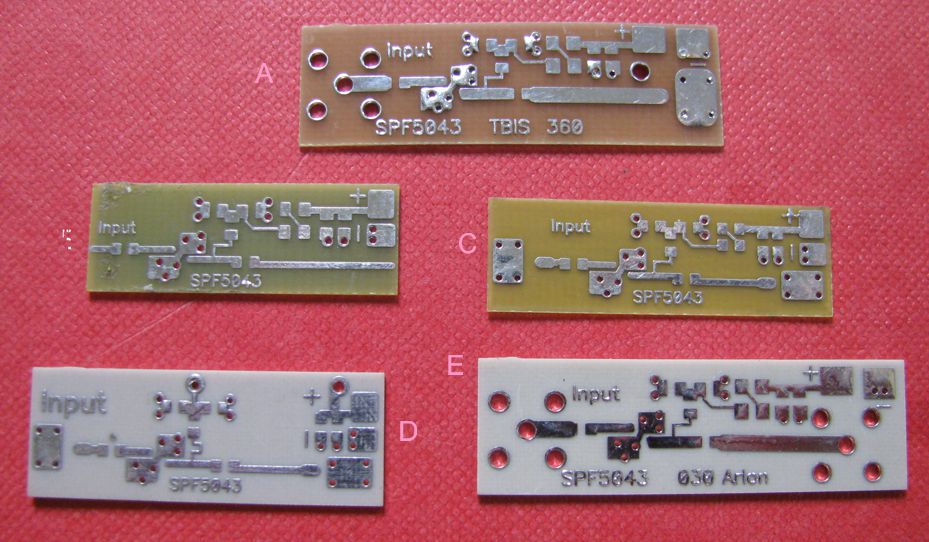

PCBs for the SPFAMP
These are the types of PCB
currently available for the SPFAMP
A
FR4 Board. Through board SMA connector input and cable termination output
B
FR4 board. SMA edge connector input and output.
C
FR4 board. cable termination input and output
D
Arlon low loss board. Cable termination input and output. Provision for LEADED bias dropper resistor to increase dissipation if run from greater than about 8-10V.
E
Arlon low loss board. SMA connector input and output
In addition there are a few other variants such as E but on FR4 board
When ordering a kit, please state the PCB type required. All FR4 board based kits are £10 each whilst the Arlon board based kits are £12 each.
